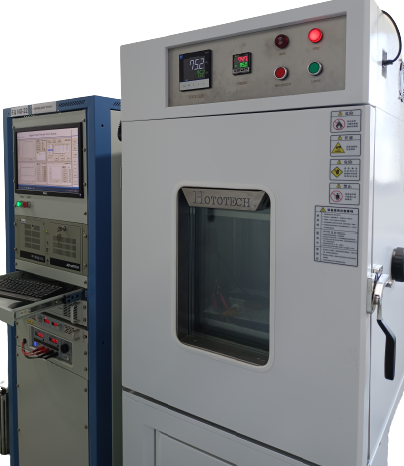

Bypass Diode Thermal Test

Purpose:

It simulates under the STC situation current, monitor junction box surface temperature, monitor diode current and the both end of diode voltage drop, linear fitting diode voltage drop and relative curve of temperature, automatic calculation diode’s junction temperature.

Standard:

It’s according to IEC61215-2:2016 standard.
