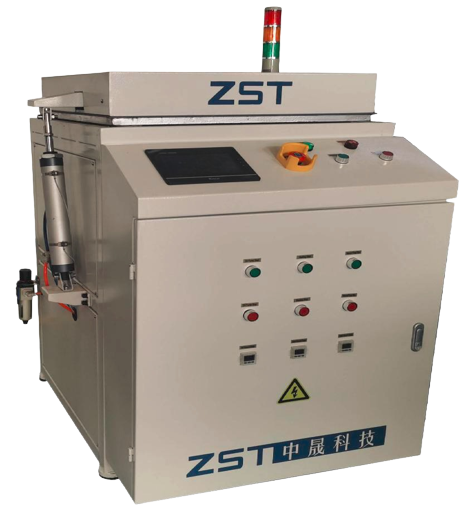

Lab Scale Laminator

Technology:
  1. Control Mode: Operation of Semi-Auto, Auto and Manual, it may realize solar panels laminate automatically and manually.
  2. Control Systems: Mitsubishi PLC controller of programming, Touch-screen display.
  3. Heating Mode: Oil heating.
  4. Control Mode of Temperature: multi-dot temperature control, standard temperature controlled Module, Temperature is controlled by the automated adjust PID aptitude system.
  5. Temperature Accuracy: ±1℃
  6. Temperature Range: 30℃～160℃
  7. Laminating Time: 8～9MIN (Include the curing time.)
  8. Vacuuming time: 4～6min
  9. Vacuum of Operation: 200～50Pa
  10. Cover’s journey: 300-400mm
  11. Environment of Use: Apply to Ordinary Industrial Environment and Laboratory

Environment, Height about Sea Level is less than 2000 M
